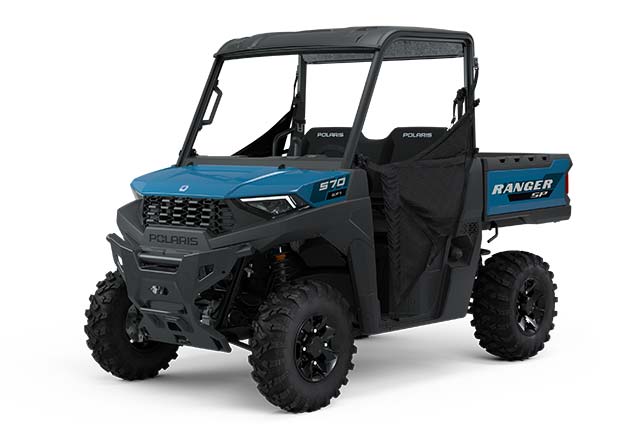

RANGER SP 570 HD 2025

RANGER SP 570 HD 2025
RANGER SP 570 HD 2025 - Image 2
RANGER SP 570 HD 2025 - Image 3
RANGER SP 570 HD 2025 - Image 4

Built for power and value in a compact package, to work and play harder with 44 HP, 680kg towing, 227kg dump box capacity and 10″ clearance.

  • 44 HP
  • 25″ Tyres
  • 25.4cm Ground Clearance
  • 2-Person Seating Capacity

Categories: , Tag:

Description

  • ENGINE & DRIVETRAIN

    Engine type
    4-Stroke Single Cylinder DOHC EFI
    Cylinders-Displacement (cc)
    567 cc / 44 HP
    Fuel System
    Electronic Fuel Injection
    Transmission/Final Drive
    Automatic PVT H/L/N/R/P; Shaft
    Drive System Type
    On-Demand True AWD/2WD/VersaTrac Turf Mode.Active Descent Control (ADC) and Heavy Duty features including upgraded rear driveshaft, grease nipples, HD sway bar, sealed suspensions bushings, sealed ball joints and driveshaft spline seals
    Cooling
    Liquid

  • SUSPENSION / BRAKES / WHEELS

    Front Suspension
    MacPherson Strut 22.9 cm Travel
    Rear Suspension
    Dual A-Arm, IRS 25.4 cm Travel
    Front / Rear Brakes
    4-Wheel Hydraulic Disc
    Front Tyres
    25 x 8-12; Carlisle 489
    Rear Tyres
    25 x 10-12; Carlisle 489
    Wheels
    Aluminum Black Xcelerator

  • DIMENSIONS

    Bed Box Dimensions (L x W x H)
    81 x 117 x 29 cm
    Front/Rear Rack or Box Capacity
    N.A. / 227 kg
    Fuel Capacity
    35.9 L
    Ground Clearance
    27.9 cm
    Overall Vehicle Size (L x W x H)
    279 x 147 x 185 cm
    Wheelbase
    185.4 cm
    Estimated Dry Weight
    499 kg

  • FEATURES

    Hitch Towing Rating
    680.4 kg
    Hitch/Type
    Standard / 5 cm Receiver
    Instrumentation
    Single Analog Dial with 2” LCD Rider Information Center, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Volt Meter, Service Indicator and Codes, Seatbelt Reminder Light, DC Outlet
    Heavy Duty
    Upgraded Rear Driveshaft, Grease Nipples, HD Sway Bar, Sealed Suspensions Bushings, Sealed Ball Joints, Driveshaft Spline Seals
    Lighting
    50W Headlight, LED Tail
