All-wheel drive with auto-locking front drive and selectable VersaTrac Turf Mode
Cooling
Liquid
SUSPENSION / BRAKES / WHEELS
Front Suspension
MacPherson Strut 22.9 cm Travel
Rear Suspension
Dual A-Arm, IRS 25.4 cm Travel
Front / Rear Brakes
4-Wheel Hydraulic Disc
Parking Brake
Park In-Transmission
Front Tyres
25 x 8-12; Carlisle 489
Rear Tyres
25 x 10-12; Carlisle 489
Wheels
12″ Aluminum
DIMENSIONS
Bed Box Dimensions (L x W x H)
82.7 x 117.3 x 28.6 cm
Rear Box Capacity
227 kg
Fuel Capacity
35.9 L
Ground Clearance
25.4 cm
Overall Vehicle Size (L x W x H)
279.4 x 148.6 x 190 cm
Wheelbase
186 cm
Estimated Dry Weight
524 kg
FEATURES
Hitch Towing Rating
680 kg

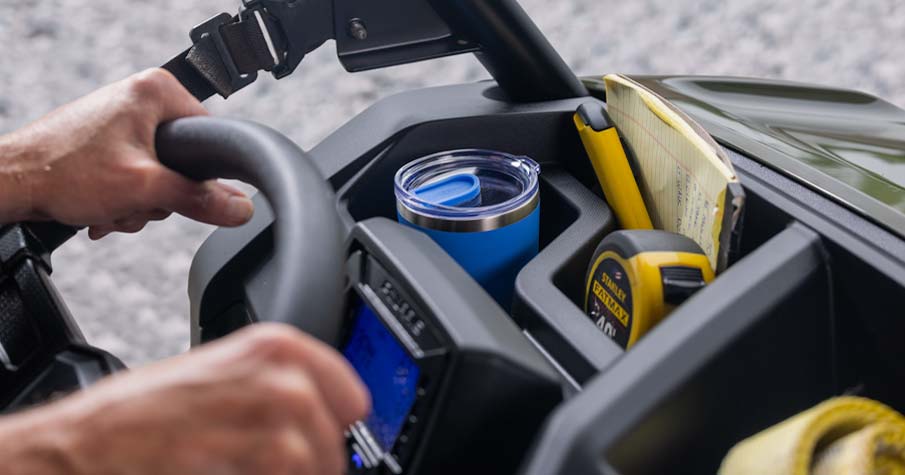

Instrumentation
4” LCD Rider Information Center: User Selectable Blue/
Red Backlighting & Brightness, Programmable Service
Intervals, Speedometer, Tachometer, Odometer,
Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel
Gauge, Coolant Temperature, Voltmeter, Service
Indicator and Codes, Seat Belt Reminder, DC Outlet
Other Standard Features
DC outlet, standard in-dash SAE charge port, USB charging port, 660-W stator charging system, 1,133 kg winch with wired remote
